DUST COLLECTOR

DURING THE GRINDING

PROCESS

EXHAUST SYSTEM

EXHAUST
SYSTEM

Sistema de exaustão Industrial Rebel.png

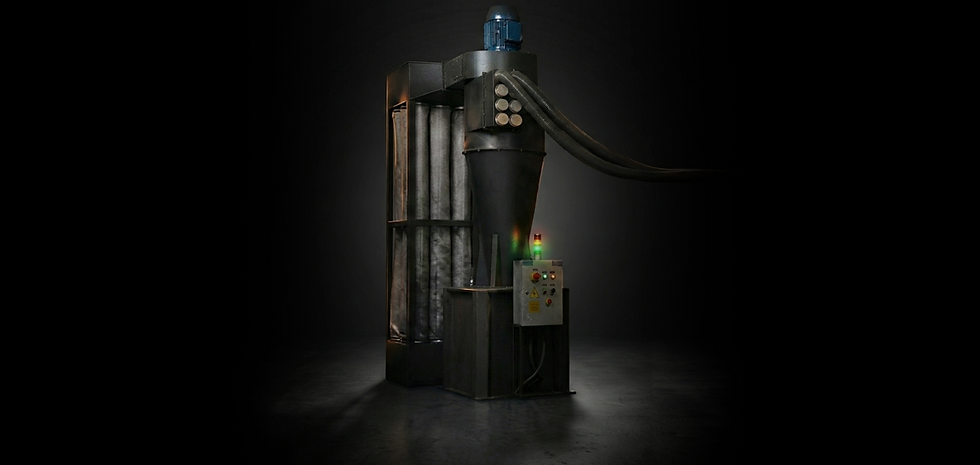

Operating with a sleeve filter system, the exhaust model turbociclon (tc), is perfect for Dust suction produced during the grinding process.



Its high efficiency allows the separation of waste between light and heavy, facilitating material reuse or disposal.



Depending on distance and footprint of your grinder machines, a single exhaust system can be use up to 09 machines.

Dirty Air.png

efficiency

the Rebel exhaust system can vacuum to 90% of the dust produced during grinding.

DUST

WASTE

BOX

Dust residue box .png

DUST

WASTE

BOX

TECHNICAL INFORMATION

Dust Collector 2.png

DUST

WASTE

BOX

Dust Collector3.png

Model:

Turbo Ciclon | TC75

Power:

20HP

Size:

Height: 3.936mm (154.96063 inch)

Width:  2.433mm (95.78740157 inch)

Depth: 1.131mm (44.48819 inch)

Flexible hose/ tube:

4" diameter

Sleeve filter bags:

09 sleeves

Flow rate:

8.900m³/h

Static pressure:

120mm co

Filtering area:

17.0 m²

Sleeve Filter.png

flexible hose and tube not included
