7,5 or 10HP
MOTOR
HEAVY-DUTY
WHEEL GRINDER
MACHINE

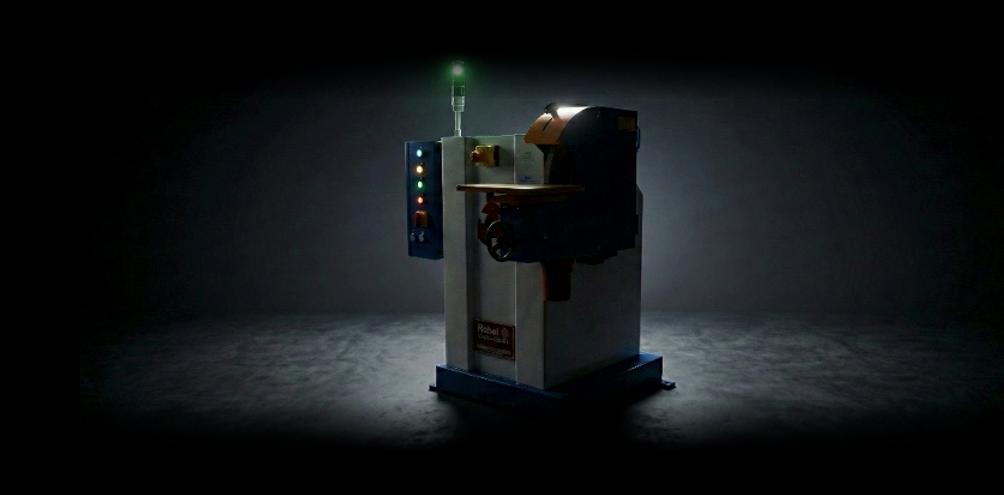

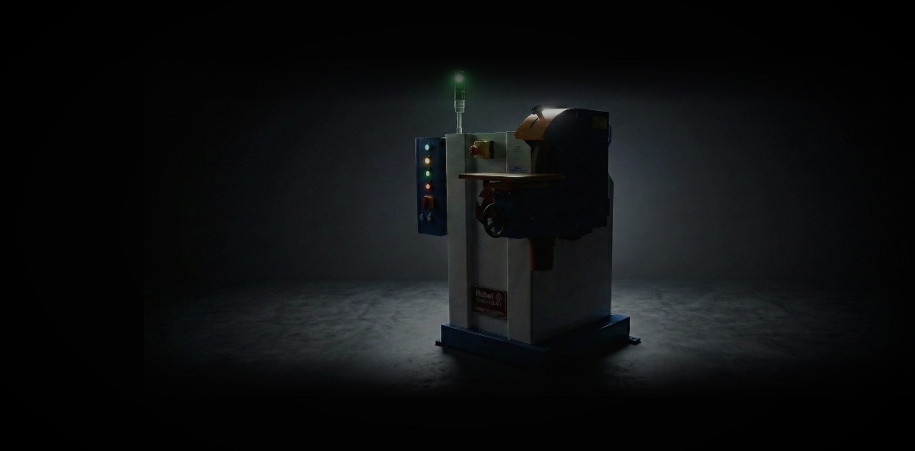

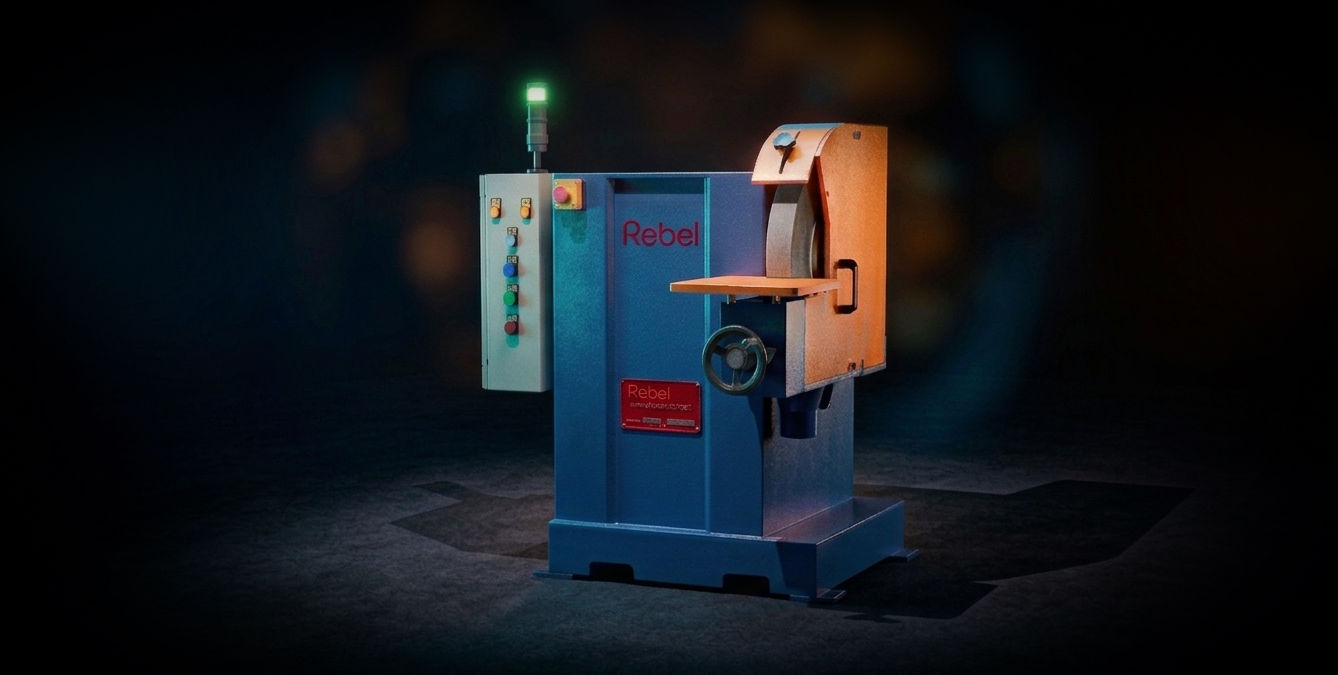

The heavy- duty wheel grinder
machine is an excellent for grinding
foundry parts of different sizes and
materials.
HEAVY-DUTY
The stable and rigid steel construction guarantees a totally vibration-free operation, even at maximum load.
The parts subject to wear, such as the bearing and shaft, are oversized so that they work without the need for maintenance.
SAFETY
Manufactured with various safety items and required standards.
The Wheel Grinder Machine has a safety device that automatically closes the wheel in case of breakage.
This device acts as an airbag minimizing the accident.
Grinder Machine Working with SuperAbrasive grinding Wheel
Grinder Machine Working with SuperAbrasive grinding Wheel
SUPERABRASIVE
GRINDING WHEEL
The Rebel grinder machine can work with conventional or diamond wheels. With a very easy and quick configuration, the grinder will works at a speed around 80m/s. constantly.
TECHNICAL INFORMATION
400RB60
Model:
400RB60
Power:
7,5HP
Wheel size:
Diameter: Ø16" (406,4 mm)
Width: 2" or 2.5" (50.8 or 63.5 mm)
Internal diameter: 5" (127 mm)
Wheel speed:
63m/ sec.
SuperAbrasive:
Wheel Speed 80m/ sec.
Equipment weight:
450 kg.
AUTOMATIC BODYGARD SYSTEM
TO PROTECT THE OPERATOR IN CASE
OF WHEEL BREAKAGE.
400RB60
Model:
500RB60
Power:
10HP
Wheel size:
Diameter: Ø20" (508 mm)
Width: 2" or 2.5" (50.8 or 63.5 mm)
Internal diameter: 8" (203,2 mm)
Wheel speed:
63m/ sec.
SuperAbrasive:
Wheel Speed 80m/ sec.
Equipment weight:
500 kg.
AUTOMATIC BODYGARD SYSTEM
TO PROTECT THE OPERATOR IN CASE
OF WHEEL BREAKAGE.
